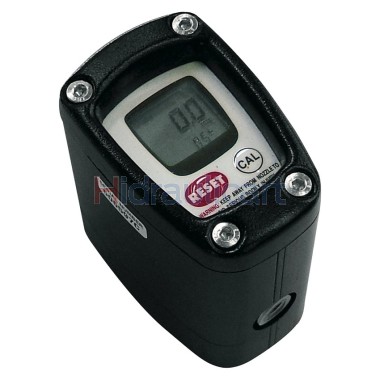

Electronic Counter Piusi K200

Cód.PIUF0043012A







€452.00

€316.00

In stock

Piusi

Product Description

DESCRIÇÃO

K200
The PIUSI K200 product is an electronic flowmeter suitable for monitoring lubricating óleo .
The K200 as an electronic flowmeter displays a running total of 5 digits (h=11.5 mm) with floating point from 0.001 to 999.99 Total, non-resettable to 8 digits (h=5 mm) from 1 to 99999999 .

ALTA PRECISÃO
The K200 Digital Flowmeter is designed to ensure accurate measurement of the amount dispensed.
Equipped with acetal resin oval gears, the K200 Oil Flowmeter can monitor the dispensed flow of low, medium and high viscosity fluids such as fuels, lubricating oils and other specialty fluids compatible with building materials for non-commercial dispensing. .

CONFIÁVEL AO LONGO DO TEMPO
K200 consists of an aluminum measuring chamber body for maximum reliability over time.
The type of pulsator is reed switch, single channel for better traceability of the amount dispensed for a maximum flow rate of 2.8 l/min and a dosing accuracy of +/- 0.5%.

These features are also included in the K200 Oil Flowmeter:
Repeatability 0.2%.
Pressure drop < 0.5 bar max. flow quotient.

Documents

Para mais informação, consulte a Ficha Técnica.
