Product Description

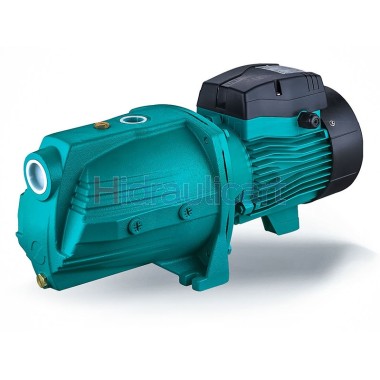

Centrifugal self-priming pump suitable for water supply to domestic installations with stainless steel turbine .
Operation
Fluid: Clean waters and non-aggressive or viscous liquids, free of solid substances.
Maximum fluid temperature: 40 ºC
Maximum suction height: 8 m
Construction features
Pump body: Cast iron
Pump support: Cast iron
Turbine: 304 Stainless Steel
Diffuser: Noryl
Motor shaft: AISI 304 stainless steel
Mechanical seal: Ceramic/Graphite
Electric Motor
Two-pole induction type, closed and self-ventilated, suitable for continuous operation, with IPX4 degree of protection and class F insulation. Single-phase 230V - 50Hz with permanent capacitor. Motors must be thermally protected by the user.
Connections
Suction: 11/4"
Compression: 1"
Specification
Connections
Suction: 11/4"
Compression: 1"
| JET AJm | |||||||||||||||||||||||
| Model | I [A] | P1 | P2 | Q | |||||||||||||||||||
| 1~230V | 3~230V | 3~400V | [kW] | [kW] | [HP] | l/min 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 80 | 100 | |
| m3 /h0 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.8 | 3.0 | 3.3 | 3.6 | 3.9 | 4.2 | 4.8 | 6.0 | ||||||||
| H [m] | |||||||||||||||||||||||
| JET AJm110 | 7.8 | - | - | 1.10 | 1.50 | 55 | 52 | 50 | 48 | 47 | 45 | 44 | 42.5 | 40 | 39 | 38 | 36 | 35 | 33 | 31.5 | 31 | 23 | |
Documents
For more information, see the Technical Data Sheet and User Manual
-
-
