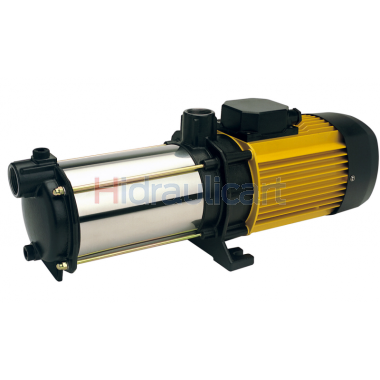

ESPA Prisma 25 Water Pump up to 7.2 m3/h

VER PREÇO / COMPRAR
Espa
Product Name Price Delivery Qty
Electric pump Espa Prisma 25-3, 1.00CV, 230V
Cód.ESP020030

€411.00

€301.90

Electric pump Espa Prisma 25-3, 1.00CV, 400V
Cód.ESP020040

€411.00

€301.90

Electric pump Espa Prisma 25-4, 1.25CV, 230V
Cód.ESP020050

€435.00

€319.50

Electric pump Espa Prisma 25-4, 1.25CV, 400V
Cód.ESP020060

€435.00

€319.50

Electric pump Espa Prisma 25-5, 1.50CV, 230V
Cód.ESP020070

€534.00

€392.20

Electric pump Espa Prisma 25-5, 1.50CV, 400V
Cód.ESP020080

€532.00

€390.80

Electric pump Espa Prisma 25-6, 2.00CV, 230V
Cód.ESP97203

€759.00

€524.00

Electric pump Espa Prisma 25-6, 2.00CV, 400V
Cód.ESP97202

€739.00

€511.00

Electric pump Espa Prisma 25-6, 2.00CV, 230V
Cód.ESP020090

€759.00

€471.70

Electric pump Espa Prisma 25-6, 2.00CV, 400V
Cód.ESP020100

€739.00

€417.50

Product Description

ESPA PRISMA series horizontal multistage centrifugal pumps, silent and with excellent performance, suitable for domestic and industrial applications, pressure groups and irrigation systems.


Operation
Fluid: Clean waters and non-aggressive or viscous liquids, free of solid substances.
Maximum fluid temperature: 40 ºC
Maximum suction height: 7 m

Constructive Features
Suction body: Cast iron with cataphoresis treatment
Drive body: Cast iron with cataphoresis treatment
Impellers: AISI 304 Stainless Steel
Diffusers: Technopolymer
Outer housing: AISI 304 stainless steel
Motor shaft: AISI 431 stainless steel
Mechanical seal: Ceramic/Graphite

Electric Motor
Two-pole induction type, closed and self-ventilated, suitable for continuous operation, with IPX5 degree of protection and class F insulation. Single-phase 230V - 50Hz with permanent capacitor or three-phase 400V - 50 Hz. Motors must be thermally protected by the user .

Connections
Suction: 1"
Compression: 1"

Specification

PRISMA 25
Model I [A] P1 P2 Q
1~230V 3~230V 3~400V [kW] [kW] [HP] l/min 0 15 30 45 60 75 90 105 120
m3 /h0 0.9 1.8 2.7 3.6 4.5 5.4 6.3 7.2
H [m]
PRISMA 25 3 5.5 3.5 2.0 1.50 0.90 1.20 33 32 31 28 26 22 17 12
PRISMA 25 4 6.8 4.3 2.5 1.50 0.90 1.20 43 42 40 37 33 28 22 15
PRISMA 25 5 7.4 5.2 3.0 1.70 1.10 1.50 56 55 53 48 43 37 29 20
PRISMA 25 6 9.8 6.7 3.9 2.20 1.50 2.00 72 68 65 58 50 40 32 24

Documents

For more information, see the Technical Data Sheet
