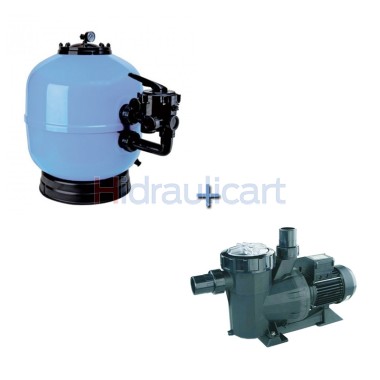

Filtration Pack, Aster Filter + Victoria Plus Pump

Cód.ASTRPACK1

In stock

From: €710.10

To: €990.00

€0.00

* Required Fields

€0.00

Product Description

FILTER

The laminated filter AstralPool Aste r is constructed with polyester and fiberglass. Available in yellow or blue, with base in polypropylene, cover without screws, cover for water leakage, pressure gauge and side selector valve. It has a maximum working pressure of 2.5 kg/cm2 and a maximum filtration speed of 50 m3/h/m2.

BOMB

The new generation of AstralPool Victoria Plus SILENT self-priming pumps has arrived. This revolutionary pump is designed to provide superior filtration performance with quiet operation. Its innovative design ensures maximum efficiency and reliability, making it the perfect choice for any pool or spa. With its advanced features and superior performance, the AstralPool Victoria Plus SILENT pump is the ideal solution for all your filtration needs.

The great advantage of this pool pump over the Astral Sena is that the Victoria Plus has a more robust motor that always works in good condition with a voltage margin of +/- 10% in relation to the motor's nominal voltage. In other words, it is a motor that is more robust to fluctuations in the mains supply, therefore having a longer lifespan. Additionally, it is prepared for environments with high humidity and temperature.

In addition, all metal parts in contact with water are made of AISI 316 stainless steel, to guarantee a working life as long as possible. Silicon carbide mechanical seal and bearings prepared to work with high temperatures and high levels of humidity. In addition, the IP-55 prevents solid and liquid particles from entering the engine.

"

Specification



 Selecção de FILTRO e BOMBA piscina*

Volume Psicina

Renovação

Velocidade Filtração

Ø Ligações

Bomba

Ø Filtro

Areia

m3

h

m3/h/m2

mm

CV

mm

Kg

50 8 50 50 0,50 400 60
75 8 50 50 0,75  500 100
115 8 50 50 1,00  600 160
170 8 50 63 1,50  750 300
200 8 50 63 2,00  800 330
*valores recomendados, o filtro e a bomba devem ser escolhidos com base nas necessidades específicas da aplicação.
