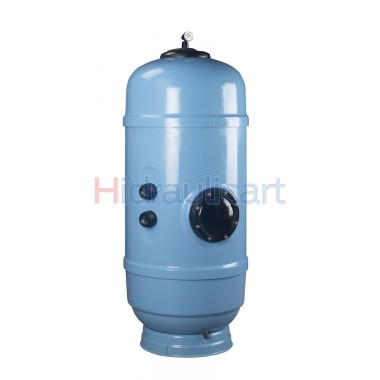

ASTRALPOOL DELTA 1000 Sand Filter - Public Pools

Product Name	Price	Delivery	Qty
ASTRALPOOL DELTA 1000 500 Cód.58682	€2,196.78 €1,758.00
ASTRALPOOL DELTA 1000 650 Cód.36676	€2,273.04 €1,819.00
ASTRALPOOL DELTA 1000 1200 Cód.36679	€6,138.93 €4,912.00

Product Description

The range of DELTA 1000 filters manufactured by ASTRALPOOL, replaces the PTK 1000 and PTK 1200 laminated filters. A manufacturing engineering that allows multiple product configuration options. The display is 30% larger and the union between the different parts of the filter is reinforced due to the double security system. The connections are on a plane and have a greater thickness that improves resistance. It also facilitates the coupling of any valve thanks to the layout of the connections. The height of the lower part of the filter has been increased to reinforce the internal union of the cracker plate.

Available in diameters 650, 800, 1000 and 1200 mm. The filtering bed is 1m long and is available with an arm collector system and a plate collector system. Complies with the requirements of the EN 16713-1 filtration standard.

Characteristics
Top cover DN 200 with quick closing for models 650 and 800 and top cover DN400 with screws for models 1000 and 1200.
Side drain cover DN 200 with screws.
Manufactured with the interior in a natural color without pigmented coverage.
Includes pressure gauge on top cover.
EPDM gaskets and stainless steel screws.
2 year warranty.
Maximum working pressure: 2.5 Kg/cm2
Color blue RAL 5024. Upon request, they can be manufactured in other colors with a minimum order of 5 units.

Specification

CARACTERÍSTICAS TÉCNICAS
REFERÊNCIA		58682	36676	36679
MODELO		DELTA 1000 500	DELTA 1000 500	DELTA 1000 500
PISCINAS VOLUME	m3	1,34	1,34	3,29
VELOCIDADE DE FILTRAÇÃO	m3/h/m2	8	13,3	45,2
LIGAÇÕES	mm	1 1/2"	1 1/2"	Ø90
DIÂMETRO	mm	500	650	1200
PESO	Kg	80	80	150
