DRILL CLASSICA and NOVAX

DRILL CLÁSSICA e NOVAX

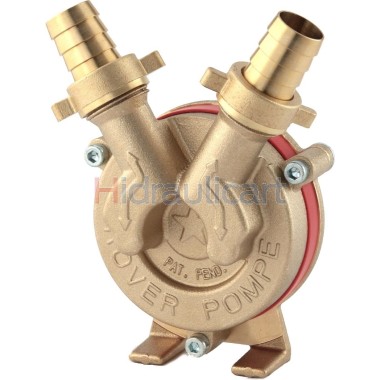

Self-priming pumps in Bronze/Inox with 8mm connection for berbequim , for transferring clean liquids such as, for example. water, wine, diesel, oil and others.

O QUE É:
It is the self-priming pump , with star geometry rotor, equipped with double direction of rotation as standard, with a high efficiency motor calculated to operate in continuous service.
The particular hydraulic geometry allows the pump to work even in the presence of air bubbles in the suction liquid.

COMO FUNCIONA:
The liquid ring pump obtains suction capability simply by filling the pump body through one of the hose connectors.
suction capacity is active in both directions of rotation.

QUAIS OS LÍQUIDOS PODEM TRANSFERIR:
It is possible to use the pump to transfer any type of clean liquid in common use, which must not be chemically aggressive or abrasive.

Some examples: water, wine, milk, vinegar, low viscosity oily solutions, neutral fluid detergents, diesel.
Liquid viscosity should not exceed 4 cps for continuous duty with free delivery and should not exceed 20 cps for intermittent duty
with free delivery and the presence of an operator for surveillance.

MANUTENÇÃO:
Normal maintenance requires some simple interventions, as if it were a normal household appliance.
After use, pour clean water to rinse the pump's internal surfaces.
The electric motor is maintenance-free, there are no parts to lubricate.
Cleaning the external parts should be done with a slightly damp sponge and then dry immediately with a cloth.
