Tellarini Brass Shaft End Transfer Pump

Product Name	Price	Delivery	Qty
Tellarini Pump I-25 C/Poly, 1" Cód.TEL541	€166.20
Tellarini Pump I-30 C/Poly, 11/4" Cód.TEL542	€252.30
Tellarini Pump I-40 C/Poly, 11/2" Cód.TEL544	€262.00
Tellarini Pump I-50 C/Poly, 2" Cód.TEL545	€396.70

Product Description

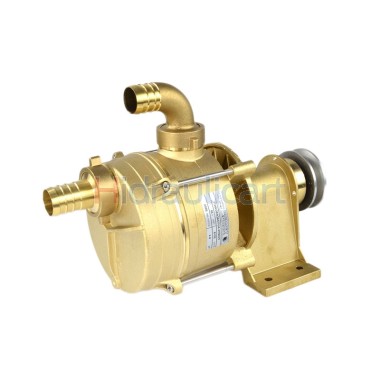

The Tellarini liquid pump series I pump is the best solution for suction and transfer of liquids, thanks to its strong self-priming capacity, the possibility of operation even with discontinuous presence of liquid in the suction and the reversibility of the flow. Made from CB754S brass with a stainless steel shaft, this version with support and pulley allows easy coupling with any motor.

For each application, it is necessary to check the suitability and choose the appropriate sealants. The product is particularly suitable for nautical uses, such as bilge, services, cooling, washing and seawater, as well as for agriculture, such as for fungicides, liquid fertilizers, components in agricultural machinery and irrigation.

Furthermore, it is also ideal for transport such as tanker trucks, road machinery and on-board water systems.

Particularly suitable for use:
nautical (sewage, services, cooling, washing, sea water)
agriculture (fungicides, liquid fertilizers, components in agricultural machines, irrigation)
transport (tanks, road machines, on-board water systems)

Specification

TELLARINI series I
Model	Connections		Required Rotation	Required Power	Manometric Height [m]
	Screw thread	Racors	RPM	[HP]	1	5	10	15	20	30
	Screw thread	Racors	RPM	[HP]	Q [l/m]
I 25	1"M	25	1400	0.20 ~ 0.50	53	38	16
			1900	0.60 ~ 0.70	72	61	47	31
			2800	1.20 ~ 1.80	97	90	85	75	70	50
I 30	11/2"M	30	1400	0.50 ~ 0.80	89	71	43	9
			1900	0.90 ~ 1.10	123	108	90	70
			2800	2.60 ~ 3.50	166	155	150	140	129	105
I 40	11/2"M	40	1400	0.60 ~ 1.00	149	119	78	32
			1900	1.50 ~ 1.90	192	168	139	110
			2800	3.70 ~ 5.00	258	240	234	220	203	167
I 50	2 M	50	1400	1.40 ~ 1.90	262	227	180	129
I 50	2 M	50	1900	3.20~4.10	360	333	299	265
