KSB Filter N Swimming Pool Pump

Product Name	Price	Expedição
Electric pump KSB N 6E, 230V Cód.KSB39300050	€444.06	5 dias úteis
Electric pump KSB N 8E, 230V Cód.KSB39300051	€493.00	5 dias úteis
Electric pump KSB N 12E, 230V Cód.KSB39300052	€567.00	5 dias úteis
Electric pump KSB N 14E, 230V Cód.KSB39300053	€610.00	6 dias úteis
Electric pump KSB N 18E, 230V Cód.KSB39300054	€640.00	5 dias úteis
Electric pump KSB N 22E, 230V Cód.KSB39300055	€747.00	5 dias úteis
Electric pump KSB N 22D, 400V Cód.KSB39300062	€694.00	5 dias úteis
Electric pump KSB N 24E, 230V Cód.KSB39300056	€791.00	5 dias úteis

Product Description

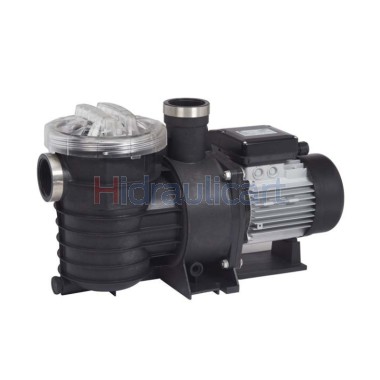

Filtra N

Self-priming Centrifugal Pump of Monobloc Construction for Swimming Pools

The KSB Filtra N self-priming monobloc pump is ideal for circulating pool water in filtration systems. This pump has the capacity to circulate up to 36 cubic metres of water per hour. With its robust design , the KSB Filtra N circulator pump for pool filtration systems is easy to use. The pump generates a maximum head of 21 metres.

Applications - Recirculation of swimming pool water in filtration systems.

Materials

Pump body, pump foot and diffuser in polypropylene, reinforced with 30% fiberglass;
Noryl impeller;
Motor shaft in AISI 420 stainless steel;
Mechanical seal in graphite and alumina;
Aluminum motor housing;
NBR gaskets;

Engine

Asynchronous, two poles;
IP 44 protection;
Class F insulation;
Continuous service;
Single-phase version with built-in thermal protector.

Features
Corrosion resistance	One-piece pump body made of impact-resistant plastic
Easy to detect clogging level	Transparent screw-on lid with stopper
Came protected against corrosion	The impeller completely surrounds the shaft end
Quick drainage in case of blockage	Two drain plugs
Easy to Clean	Large, wide-mesh filter basket that opens in half for easy cleaning
Resistant to aggressive liquids	Came made of stainless steel
Maintenance free and reliable	Shaft sealing by mechanical seal
Silent operation	Single-phase motor with integrated protection or three-phase motor

Specification

Single-phase	P1 (kW)	P2 (kW)	I (230 V) (A)	kg
6 And	0.65	0.4	3	9.2
8 And	0.7	0.4	3.2	9.2
12 And	0.8	0.4	3.6	9.2
14 And	0.95	0.7	4.5	11
18 And	1.15	0.7	5.5	11
22 And	1.5	1.2	7	13.3
24 And	1.75	1.2	8	13.3

Three-phase	P1 (kW)	P2 (kW)	I (230 V) (A)	I (400 V) (A)	kg
6 D	0.57	0.4	2	1.1	9.2
8 D	0.6	0.4	2.1	1.2	9.2
12 D	0.7	0.4	2.3	1.3	9.2
14 D	0.9	0.7	3.1	1.8	11
18 D	1	0.7	3.5	2	11
22 D	1.4	1.1	5	2.9	13.3
24 D	1.6	1.1	5.5	3.2	13.3
30 D	2.15	1.5	6.3	3.6	13.3

Dimensions (mm)	A (mm)
6, 8, 10, 12, 14, 18	512.5
22, 24, 30	534

VOLUME	CIRCULATION	FILTRATION	Ø FILTER	PUMP
30 m³	8 h	50 m³/h/m²	300 mm	0.33 HP
40-50 m³	8 h	50 m³/h/m²	400 mm	0.50 HP
70-80 m³	8 h	50 m³/h/m²	500 mm	0.50 HP
90-100 m³	8 h	50 m³/h/m²	600 mm	0.75 HP
100-140 m³	8 h	50 m³/h/m²	750 mm	1 HP
140-170 m³	8 h	50 m³/h/m²	800 mm	1.50 HP
170-200 m³	8 h	50 m³/h/m²	900 mm	2 HP
