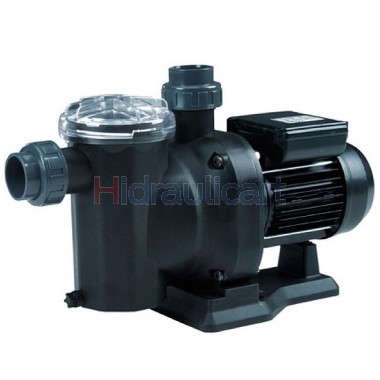

Astral Sena Pool Pump

Astral Sena Pool Pump

Product Name	Price	Delivery	Qty
Electric pump Astral Sena II 0.33CV, 230V Cód.ASTR25461	€474.78 €318.00
Electric pump Astral Sena II 0.50CV 230V Cód.ASTR25462	€499.38 €335.00
Electric pump Astral Sena II 0.75CV, 230V Cód.ASTR25463	€527.67 €355.00
Electric pump Astral Sena II 0.75CV, 400V Cód.ASTR25464	€528.90 €356.00
Electric pump Astral Sena II 1.00CV, 230V Cód.ASTR25465	€535.05 €360.00
Electric pump Astral Sena II 1.00CV, 400V Cód.ASTR25466	€573.18 €387.00
Electric pump Astral Sena II 1.25CV, 230V Cód.ASTR25467	€575.64 €388.00
Electric pump Astral Sena II 1.25CV, 400V Cód.ASTR25468	€578.10 €390.00

Product Description

In the Astral Sena range of Pool Pumps , both the maximum flow rate and the low noise fully satisfy the requirements of the private pool, while also having an elegant design, already characteristic of AstralPool .
It also has a self-priming capacity, above 2 m without a foot valve.
Sena pumps are made from special plastics with a 2 L capacity pre-filter and a transparent lid that allows you to see the inside of the pre-filter.
The Sena model range is available with powers from 1/3 CV to 1,25 CV in single-phase motors and from 3/4 CV to 1,25 CV in three-phase motors, allowing operation at 230 V and 230/400 V with a variation of ± 10% compared to the nominal voltage.

Features

Stainless steel pump screw set;
1,5” suction and discharge connection fitting for Ø 50mm nozzle;
Mechanical closure made of AISI-316 ;
Rotor in NORYL ® ;
Pump body and diffuser made of polypropylene with mineral filler and fiberglass;
Class F insulation and IP-55 motor protection, allows it to work in environments with high humidity and high temperatures;
Self-suction capacity above 2 m ;
Standard model at 50 Hz .

Specification

MODEL	THE	B	W	Ø D	AND	F	G	H	I
0.33 HP	472.3	191.5	290.5	50	225.5	210.5	296.7	199	142
0.5 HP	472.3	191.5	290.5	50	225.5	210.5	296.7	199	142
0.75 HP 230V	489	208.3	290.5	50	225.5	210.5	296.7	199	142
0.75 HP 400V	489	208.3	290.5	50	225.5	210.5	296.7	199	142
1 HP 230 V	489	208.3	290.5	50	225.5	210.5	296.7	199	142
1 HP 400 V	489	208.3	290.5	50	225.5	210.5	296.7	199	142
1.25 HP 230 V	489	208.3	290.5	50	225.5	210.5	296.7	199	142
1.25 HP 400 V	489	208.3	290.5	50	225.5	210.5	296.7	199	142

230V	230/400 V	THE			P1 (Kw)		P2 (Kw)		HP	uF	H(m)
II	III	THE			P1 (Kw)		P2 (Kw)				4	6	8	10	12	14	16	18
50 Hz	50Hz	230 V II	230 V III	400 V III	II	III	II	III			Q ( ^m3 /h)
25461	-	2.1	-	-	0.46	-	0.23	-	0.33	12	9.3	7	3.5	-	-	-	-	-
25462	-	2.7	-	-	0.609	-	0.41	-	0.5	12	12	9.6	7.5	4	-	-	-	-
25463	25464	3.5	2.85	1.65	0.79	0.91	0.56	0.62	0.75	14	-	13.5	11.2	8.8	5	-	-	-
25465	25466	4.2	3.4	1.95	0.91	1.14	0.63	0.84	1	16	-	15.6	13.8	11.5	8.8	4.5	-	-
25467	25468	5.4	4.6	2.65	1.19	1.38	0.82	0.97	1.25	16	-	18	16	14	11.8	9	4	-

VOLUME	CIRCULATION	FILTRATION	Ø FILTER	PUMP
30 m³	8 h	50 m³/h/m²	300 mm	0.33 HP
40-50 m³	8 h	50 m³/h/m²	400 mm	0.50 HP
70-80 m³	8 h	50 m³/h/m²	500 mm	0.50 HP
90-100 m³	8 h	50 m³/h/m²	600 mm	0.75 HP
100-140 m³	8 h	50 m³/h/m²	750 mm	1 HP
140-170 m³	8 h	50 m³/h/m²	800 mm	1.50 HP
170-200 m³	8 h	50 m³/h/m²	900 mm	2 HP
