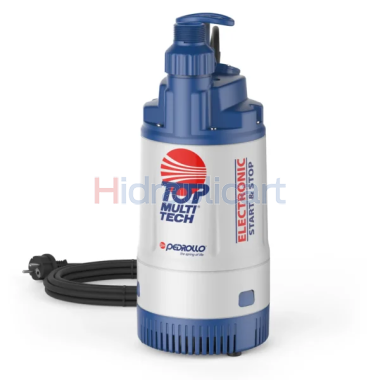

Pedrollo TOP MULTI-TECH Drainage Pump

- The automatic submersible pump that transforms your water management into efficiency and peace of mind -

If you are looking for a practical, powerful and intelligent solution for domestic water supply or irrigation, TOP MULTI-TECH is the ideal choice. Designed to operate submerged with maximum efficiency, it combines high performance , low consumption and durability with total practicality of use.

Main Advantages

• Automatic operation -   turns on and off by itself when you open or close the tap.

• Quiet and reliable - optimized internal structure with anti-vibration feet.

• Low maintenance - self-cleaning system that activates the pump for 10 seconds every 48 hours of non-use.

• Dry-running protection - prevents damage even in the event of a water shortage.

Technical Characteristics

• Maximum flow rate - up to 120 L/min (7,2 m³/h)

• Manometric height - up to 52 meters

• Liquid temperature - up to 40°C

• Drainage up to - 35 mm from the bottom

• Installation depth - up to 5 meters

• Voltage - 110V or 220V

• Power - from 0,55 kW to 0,75 kW ( models 2 to 5)

• Particles - Passage up to 1.3 mm ;

Sturdy Structure

• Body, filter and connections in anti-corrosive technopolymer .

• Impellers and diffusers in Noryl™ .

• Motor shaft in AISI 431 stainless steel .

• Double seal with oil chamber for maximum internal protection.

• Class F insulation .

Pronta para uso

• 10 meter cable with Schuko plug

• Integrated electronic float

• Hose connector Ø 35 mm included

• 1¼” threaded port

• Vibration isolation feet

Onde usar

• Providing clean water to homes , backyards and greenhouses

• Rainwater harvesting for irrigation systems or reservoirs

• Installations with wells , tanks or cisterns

• Ideal for replacing old systems , without changes to the structure

Sustentável e econômica

TOP MULTI-TECH was developed for the conscious use of water. Its automatic operation and reduced energy consumption contribute to financial and environmental savings , with durability that guarantees long-term returns.

Garantia de qualidade

With a patent registered in the European Union , TOP MULTI-TECH offers safety, exclusivity and performance, with the quality seal of Pedrollo , a world reference in water pumping technology.

O que acompanha a Bomba?

• Ready-to-use automatic pump✅
• Integrated electronic buoy✅
• 10 meter cable with plug✅
• Hose connector Ø 35 mm ✅
• Anti-vibration feet✅
• Pedrollo Instruction Manual and Support ✅

TOP MULTI-TECH - Power , silence and practicality in a single device.
Invest in efficiency and peace of mind with Pedrollo 's reliability.
TIP - It is advisable to use a 1 L expansion vessel !
