Product Name	Price	Delivery	Qty
PSH FDN-325H Cód.PSHFDN325H	€2,837.61
PSH FDN-326H Cód.PSHFDN326H	€3,116.82
PSH FDN-327H Cód.PSHFDN327H	€3,661.71
PSH FDN-328H Cód.PSHFDN328H	€3,800.70
PSH FDN-227H Cód.PSHFDN227H	€4,134.03
PSH FDN-228H Cód.PSHFDN228H	€4,450.14
PSH FDN-129 H Cód.PSHFDN129H	€4,522.71
PSH FDN-130 H Cód.PSHFDN130H	€4,661.70
PSH FDN-123H Cód.PSHFDN123H	€5,891.70
PSH FDN-131H Cód.PSHFDN131H	€6,049.14
PSH FDN-125 H Cód.PSHFDN125H	€6,207.81
PSH FDN-132H Cód.PSHFDN132H	€6,360.33
PSH FDN-126H Cód.PSHFDN126H	€6,555.90

Product Description

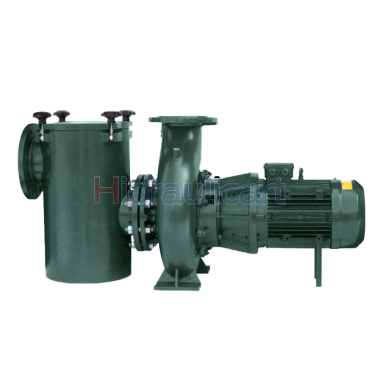

PSH FDN Pump - 1500-H

The FDN-1500-H Pump is a pump specially designed for commercial pools and competition pools.

Very quiet pumps that provide high flow rates, making them ideal for large pools. All parts in contact with water have been treated with cataphoresis, which significantly extends the life of the cast iron, as cataphoresis is one of the best anti-corrosive and antioxidant treatments currently available. On request, the entire range is available in bronze or stainless steel.

Features

Protection - IP55 ;
Independent pre-filter that allows use with other pump series;
Flow rate - up to 300 m³ / h ;
Power rating - from 2HP to 15HP ;
Voltage - 230 / 400V or 400 / 690V ;
Motor - 50 Hz / 2900 rpm , also available in 60 Hz ;
Pump housing - cast iron;
Impeller - Cast iron or bronze (on request) ;
Shaft - AISI 316L stainless steel;
Mechanical Seal - Carbon + Resin - Ceramic;
Pre-filter basket - AISI 304 ;
Screws - AISI 304 stainless steel;

Advantages

Long-term cataphoresis treatment to prevent corrosion.
High efficiency motor class IE3 according to EC nº640 / 2009 .
Available in bronze for operation with salt and seawater chlorinators.

Specification

Model	Power		III 230/400 V		III 400/700 V		Manometric Head (m)									Connection		Weight
	Power		III 230/400 V		III 400/700 V		6	8	10	12	14	16	18	20	22	DNA	DNI	Weight
	kW	HP	A		A	A	Flow rate ( ^m3 /h)									IN	OUT	Kg
FDN-325 H	1.5	2	5.7	3.3	-	-	48	40	33	24	13	-	-	-	-	100	50	84
FDN-326 H	2.2	3	7.9	4.5	-	-	54	48	42	36	28	17	-	-	-	100	50	89
FDN-127H	3	4	10.5	6	-	-	73	66	55	46	33	11	-	-	-	100	80	103
FDN-128H	4	5.5	13.8	7.9	7.9	4.6	99	91	82	70	58	42	19	-	-	100	80	111
FDN-227H	7.5	10	-	-	14.3	8.3	-	-	134	123	111	97	79	52	-	100	80	151
FDN-228H	9.2	12.5	-	-	17.5	10.1	-	-	-	141	130	118	105	86	61	100	80	153
FDN-129H	5.5	7.5	18.6	10.7	10.7	6.2	140	128	114	97	67	23	-	-	-	125	100	143
FDN-130 H	7.5	10	-	-	14.3	8.3	156	145	131	117	97	73	13	-	-	125	100	153
FDN-131 H	9.2	12.5	-	-	17.5	10.1	199	185	170	154	131	112	77	-	-	150	100	213
FDN-132 H	1.1	15	-	-	20.4	11.8	-	-	175	163	146	125	102	73	-	150	100	243
