ZODIAC SIROCCO² dehumidifier

VER PREÇO / COMPRAR
Zodiac
Product Name Price Delivery Qty
SIROCCO2 2M White dehumidifier
Cód.ASTRWD002088

€7,059.00

€4,818.00

SIROCCO2 3M Dehumidifier White
Cód.ASTRWD002089

€7,402.14

€5,626.00

SIROCCO2 5M White Dehumidifier
Cód.ASTRWD002090

€8,068.80

€6,135.00

SIROCCO2 5T White Dehumidifier
Cód.ASTRWD002091

€8,304.96

€6,312.00

SIROCCO2 2M Gray dehumidifier
Cód.ASTRWD002215

€6,153.69

€4,677.00

SIROCCO2 dehumidifier 3M Gray
Cód.ASTRWD002216

€7,402.14

€5,626.00

SIROCCO2 5M Gray dehumidifier
Cód.ASTRWD002217

€7,832.64

€5,953.00

SIROCCO2 5T Gray Dehumidifier
Cód.ASTRWD002218

€8,063.00

€6,128.00

Product Description

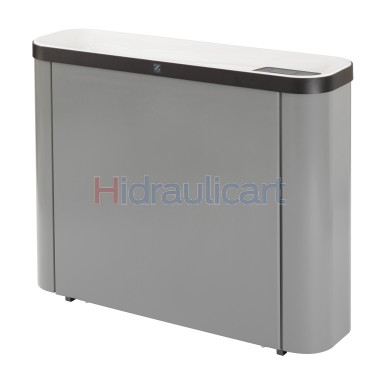

ZODIAC SIROCCO 2 dehumidifier

Optimal Comfort - Thanks to its silent mode and vertical ventilation , Sirocco² is a discreet dehumidification unit that preserves bathing comfort.

Features

  • Vertical air outlet;
  • Free-flow or through-wall mounting (with accessories);
  • Fixed to the wall or floor (with support);
  • Galvanized and epoxy painted body;
  • Built-in hygro-sensor ;
  • LCD display   (LED) built-in (remote control optional);
  • 2 speed centrifugal fan with Silence mode ;
  • Energy saving mode (pool cover contact);
  • Air heating options using electric resistance or hot water battery, which can be integrated on site into the main body of the dehumidifier (no need for additional space);
  • Available in 2 colors (gray or white);

ADVANTAGES

GREAT COMFORT

The ZODIAC Engineering team has worked hard to create an extremely silent dehumidifier, which, combined with its vertical air injection capability, makes the Sirocco2 a discreet dehumidifier, making you forget its presence. Thanks to its silent mode and vertical ventilation, the Sirocco² is a discreet dehumidification unit that preserves bathing comfort.

INTEGRATED INTELLIGENCE

With its humidity sensor, Sirocco2 performs a self-diagnosis to ensure the right humidity level in all circumstances for maximum durability of the building. It also allows, when the pool is unoccupied, to reduce energy consumption by lowering the air heating temperature.

HARMONIOUS DESIGN

With its refined lines, no visible grid and its two colours, Sirocco² adapts elegantly and discreetly to all indoor pool environments.

GREAT COMFORT INTEGRATED INTELLIGENCE HARMONIOUS DESIGN

Specification

TECHNICAL CHARACTERISTICS
MODELS SIROCCO 2 2M SIROCCO2 2M SIROCCO2 5M SIROCCO2 5T
CODE WD002088
WD002215
WD002089
WD002216
WD002090
WD002217
WD002091
WD002218
DEHUMIDIFICATION CAPACITY liters/hour 2.5 3.8 5.5 5.7
ABSORBED POWER W 1200 2120 2580 2810
AIR FLOW m 3 /h 600 800 1000
ELECTRICITY SOURCE    220 - 240 V / 1 N ~ / 50 Hz 380 - 400 V / 3 N ~ / 50 Hz
NOMINAL ABSORBED INTENSITY A 5.3 9.5 11.8 4.8
MAXIMUM ABSORBED INTENSITY A 6.9 12.5 16.7 5.7
QUANTITY OF REFRIGERANT FLUID KG 0.93 1.15 1.65
EVACUATION OF CONDENSATE   Flexible tube Ø12/18
ACOUSTIC POWER IN STANDARD/ SILENCE MODE dB(A) 61.5 / 58.5 65 / 62 63.5 / 60 64.5 / 61
ACOUSTIC POWER IN STANDARD/ SILENCE MODE dB(A) 36 / 33 40 / 37 38 / 34 39 / 35
ELECTRICAL RESISTANCE CHARACTERISTICS
ACOUSTIC PRESSURE AT 5m IN STANDARD/SILENCE MODE dB(A) 36 / 33 40 / 37 38 / 34 39 / 35
ACOUSTIC POWER AT 5m IN STANDARD/SILENCE MODE dB(A) 61.5 / 58.5 65 / 62 63.5 / 60 64.5 / 61
BACKUP ENERGY kW 2 3 4.5
MAXIMUM ABSORPTION INTENSITY A 8.7 13.1 19.6
HOT WATER COIL FEATURES
POWER WITH PRIMER 40-50°C / 90-70°C kW 2.2 / 7.1 3.2 / 8.1 3.7 / 11.1
WATER FLOW RATE WITH PRIMARY 40-50°C / 90-70°C m 3 /h 0.18 / 0.3 0.27 / 0.35 0.31 / 0.47
PRESSURE LOSS WITH PRIMARY 40-50°C / 90-70°C kPa 16 / 28 23 / 39 17 / 35
CONNECTION mm 15/21 male

Documents

Technical Sheet .

For more information, see the User Manual .
