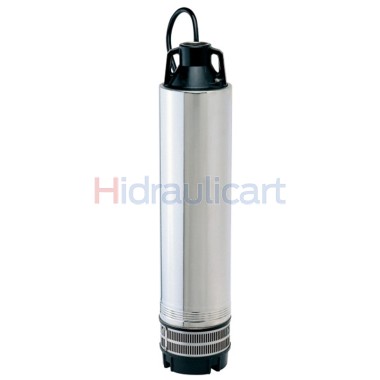

ESPA Acuaria 37 Submersible Water Pump up to 10 m3/h

ESPA ACUARIA series horizontal multistage centrifugal pumps, silent and with excellent performance, suitable for domestic and industrial applications, pressure groups and irrigation systems.

Submersible electric pumps for clean water are ideal for various applications, including domestic use, sprinkler irrigation and pressure groups. Designed to pump clean water free of solids, these pumps have a stainless steel body, base and impeller.

Product Name	Price	Delivery	Qty
Espa Acuaria 37-4 electric pump, 230V Cód.ESP290034	€1,085.00 €651.00
Electropump Espa Acuaria 37-4, 400V Cód.ESP290035	€1,084.00 €650.40
Electric pump Espa Acuaria 37-6, 400V Cód.ESP290040	€981.00 €720.50

Product Description

Applications:
Pumping clean water for domestic, industrial, agricultural and gardening use. Suitable for open wells, tanks and deposits in applications such as water transfer, sprinkler or drip irrigation, home pressurization or pressure equipment.

Operation:
Fluid: Clean water free of solids
Maximum liquid temperature: 35 ºC
Maximum immersion depth: 12 m
Solids passage: 1.5 mm
Maximum number of starts per hour: 25

Constructive Features
Pump body: Cast Iron
Pump Base: Cast Iron
Turbine: Stainless Steel
Diffusers: Technopolymer
Mechanical Seal: Double Graphite/Ceramic
Power Cable: 15 m

Electric Motor
Submersible motors with IPX8 degree of protection and class F insulation. Water cooled. Single-phase version with external capacitor.

Connections
Ø Output: 11/2“

Specification

ACUARIA 37
Model	I [A]			P1	P2		Q
	1~230V	3~230V	3~400V	[kW]	[kW]	[HP]	l/min 0	20	40	60	100	120	140	160
							^m3 /h0	1.2	2.4	3.6	6.6	7.2	8.4	9.6
							H [m]
ACUARIA 37 4	9.2	-	3.4	1.9	1.10	1.50		56	53	51	41	35	29	22
ACUARIA 37 6	-	-	5.3	3.0	2.20	3.00		85	81	77	65	56	46	37
