Neptune Sand Filter Side Valve

Product Name	Price	Delivery	Qty
Neptune Coral Swimming Pool Filter 300mm Cód.39420005	€266.91 €215.00
Neptune Coral Swimming Pool Filter 400mm Cód.39420010	€306.27 €249.00
Neptune Coral Swimming Pool Filter 500mm Cód.39420015	€340.96 €289.77
Neptune Coral Swimming Pool Filter 600mm Cód.39420020	€442.74 €352.00

Product Description

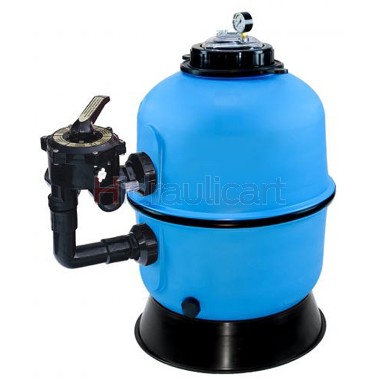

Coral Neptuno injected polypropylene filter

Blue color , transparent base and lid with polypropylene fixing nut, water leak plug, pressure gauge and side selector valve.

FEATURES

Max. working pressure 1,6 kg/cm ² .
Maximum filtration speed 50 m ³ /h/m ² .
Maximum working temperature - 50 ºC .

m ³ /h	D	Alt.	Sald.	FLINT
4	300	535	1"½	30kg
7	400	635	1"½	60kg
10	500	725	1"½	85kg
14	600	855	1"½	150kg

Specification

VOLUME	CIRCULATION	FILTRATION	Ø FILTER	PUMP
30 m³	8 h	50 m³/h/m²	300 mm	0.33 HP
40-50 m³	8 h	50 m³/h/m²	400 mm	0.50 HP
70-80 m³	8 h	50 m³/h/m²	500 mm	0.50 HP
90-100 m³	8 h	50 m³/h/m²	600 mm.	0.75 HP
100-140 m³	8 h	50 m³/h/m²	750 mm	1 HP
140-170 m³	8 h	50 m³/h/m²	800 mm	1.50 HP
170-200 m³	8 h	50 m³/h/m²	900 mm	2 HP

Documents

For more information, see the Technical Data Sheet
