Multicyclone Filter

The Multicyclone Filter is the ideal solution for those looking to reduce water waste and increase filtration efficiency . With centrifugal pre-filtration technology, it removes up to 80% of sediment before it reaches the main filter, extending its lifespan and reducing the need for maintenance.

Main Advantages

• Water saving - system that drastically reduces waste.
• Low maintenance - no moving parts or consumables.
• Efficient filtration - retains sediments heavier than water.
• High durability - built with materials resistant to pressure up to 3,5 bar.
• Compatible with metric and imperial unions.

How it Works

Water is directed by a plate that directs it tangentially into the hydrocyclones that make up the multicyclone. This movement creates a centrifugal effect that separates solid particles (heavier than water) , depositing them in the sediment chamber. The result is cleaner water, which flows to the main filter with a lower dirt load.

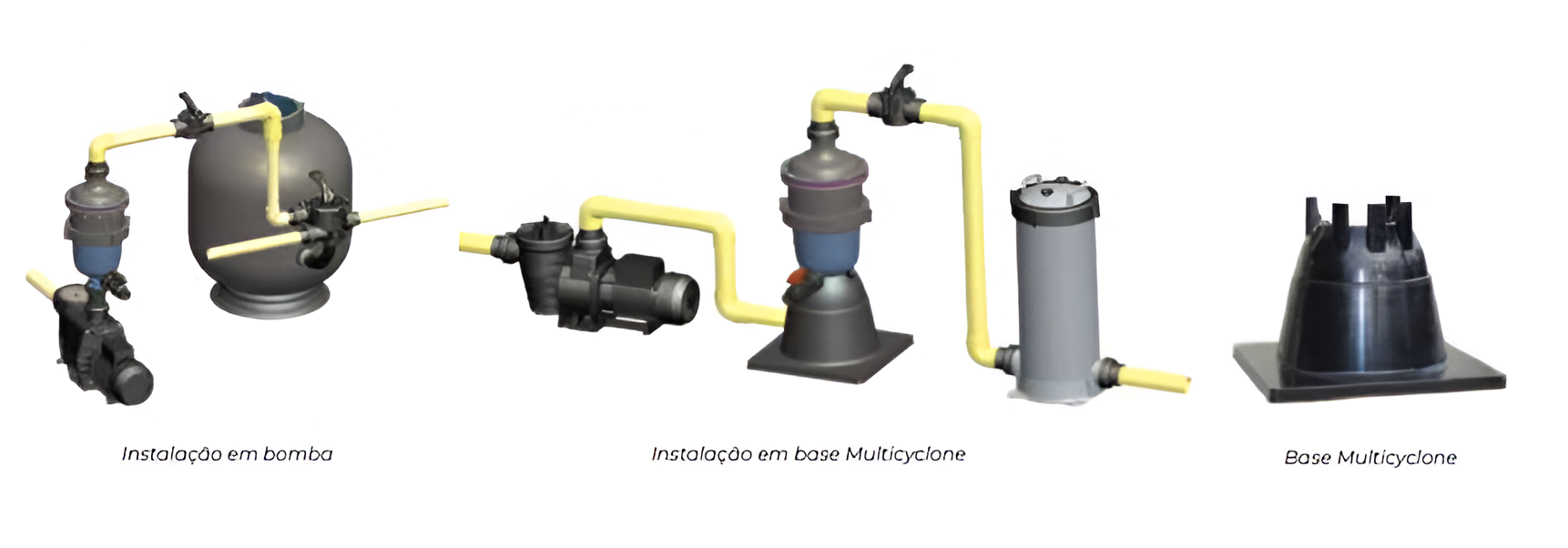

Installation

• Directly at the pump.
• On a dedicated Multicyclone base.
