HAYWARD laminated filter

HAYWARD laminated filter

Cód.laminado-Hayward

In stock

From: €490.00

To: €1,190.00

€0.00

Modelo*: Qty:

* Required Fields

€0.00

Qty:

Product Description

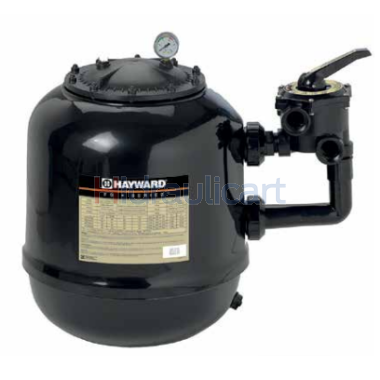

Hayward Filter

Filter body in polyester reinforced with fiberglass for greater pressure resistance .
Adjustable height.
Attractive, the black color matches the existing range.

Drain to drain water from the filter

Bottom and Walls and Waterline

6-way valve

Fine and Ultra-fine Filters

Active brushing

Specification

TECHNICAL CHARACTERISTICS
MODEL		500mm	600mm	780mm	900mm
FLOW	m ³ /h	10	14	22	32
LINKS	mm	1'1/2	1'1/2	2'	2'
FILTERING SURFACE	m ²	0.2	0.28	0.48	0.64
HEIGHT	mm	630	690	830	950
FINE SAND WEIGHT	Kg	75	100	200	300
COARSE SAND WEIGHT	Kg	25	50	100	150

DIMENSIONS
Model		500mm	600mm	780mm	900mm
THE	mm	550	635	770	870
B	mm	880	990	1220	1300
W	mm	255	285	365	450

Documents

For more information, see the Technical Data Sheet .
