Volcán Laminated Sand Filter

Cód.Volcan

In stock

From: €399.00

To: €2,170.00

€0.00

Modelo*

Qty:

Opcional

1 x TAMPA TRANSPARENTE +€120.00

* Required Fields

€0.00

Qty:

Product Description

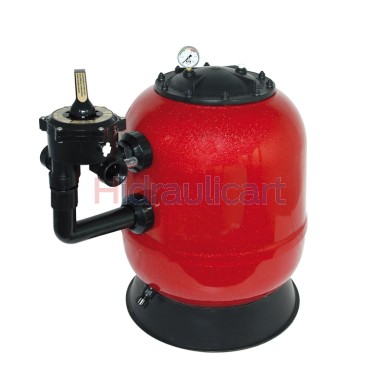

Volcán Laminated Filters

The Volcán filter range is laminated in metallic-colored polyester with a 6-way side valve.

6 -way side valve, ABS top cover, with screws and ABS top cover, with screws and pressure gauge.

Available in 6 sizes ( 400mm , 500mm , 650mm , 800mm , 950mm , 1100mm ). Ideal for all types of small , medium and large pools (can be used in both private and community pools).

Includes

6 -way side valve.
Robust base (except for the 950 and 1100 models which do not have one) that guarantees a stable and secure installation.
ABS cover, with screws and pressure gauge.
Filtration rate 50 m³/h/m² .

Specification

TECHNICAL CHARACTERISTICS
MODEL		400mm	500mm	650mm	800mm	950mm	1100mm
FLOW	m ³ /h	7	10	15	24	35	48
SAND WEIGHT	Kg	65	100	175	350	500	850
GLASS WEIGHT	Kg	53	80	141	280	400	680
SELECTOR VALVE	-	1 1/2"	1 1/2"	1 1/2"	2"	2"	-
NUMBER OF CREPINAS	-	8	8	8	16	16	30
CREPINAS	mm	100	140	200	140/200	140/200	-
PRESSURE GAUGE	-	YES	YES	YES	YES	YES	YES
