Pentair Triton Neo Sand Filter - CP

Product Name	Price	Delivery	Qty
Filtro Laminado Triton NEO-CP Ø480 (8.5m3/h) - válvula 1.1/2" lat. Cód.ECO84297	€1,316.00 €921.00
Filtro Laminado Triton NEO-CP Ø610 (14m3/h) - válvula 1.1/2" lat. Cód.ECO84298	€1,549.00 €1,084.00
Filtro Laminado Triton NEO-CP Ø762 (22 m3/h) - válvula 2" lat. Cód.ECO84299	€1,980.00 €1,386.00
Filtro Laminado Triton NEO-CP Ø914 (32 m3/h) - válvula 2" lat. Cód.ECO84301	€2,687.00 €1,881.00

Product Description

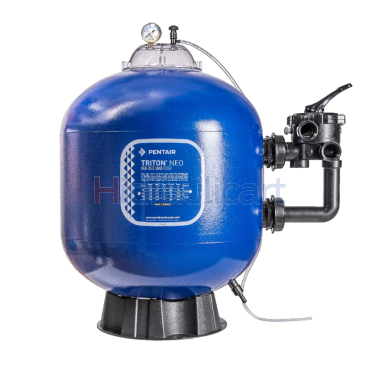

Triton NEO-CP Sand Filter

Sand Filter with Side Selector Valve – Unbeatable Clarity, Durability and Ease

Discover the sand filter that redefines the standards of performance and durability. With an ultra-strong resin-molded body reinforced with fiberglass, this filter is designed to last a lifetime - completely rustproof and UV protected .

Thanks to the innovative patented ClearPro technology , the ceramic collection arms trap particles up to 4x smaller than conventional filters, ensuring crystal clear water with incomparable shine . The 360º diffusion system ensures homogeneous water distribution for maximum filtration efficiency.

Advantages and Benefits

Cleaner water - Superior clarity thanks to ClearPro technology.
Simplified maintenance - Easy access water drain and accessories with threaded connection.
Hassle-free installation - Quick assembly with through-hole flange and practical connections.
Extreme Durability - Robust, corrosion-resistant body with UV protection.
Total flexibility - Available with side or top selector valve, adapting to all configurations.

Usage Recommendations

Ideal for residential and commercial pools that require high filtration quality with low maintenance. Can be used with sand or glass filter bed.

Available Models

Diameters - 480 mm , 610 mm , 762 mm and 914 mm ;
Choose the model that best suits the pump power and the volume of your pool.

Technical Characteristics

360º diffuser for optimized water flow
Ceramic collector arms (ClearPro)
Body molded in resin reinforced with fiberglass
Viewing dome and articulated diffuser
Quick drain drain
Screw connections for easy maintenance
10 year hull warranty.

Specification

Model	Side Valve	Filter Ø (mm)	Flow rate (m³/h)	Sand 0,4 - 0,8 mm (kg)	Max Pressure (bar)	Max. Temp. (°C)
TRITON NEO – CP Ø480	1 ¼"	480	8.5	75	3.5	50
TRITON NEO – CP Ø610	1 ½"	610	14	150	3.5	50
TRITON NEO – CP Ø762	2"	762	22	250	3.5	50
TRITON NEO – CP Ø914	2"	914	32	400	3.5	50

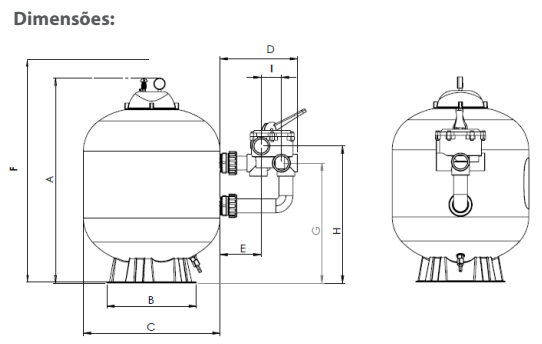

Model	A	B	C	D	E	F	G	H	I
NEO – CP Ø480	785	400	480	252	120	836	463	524	70
NEO – CP Ø610	915	400	610	252	120	996	530	592	70
NEO – CP Ø762	1055	610	762	302	120	996	590	671	70
NEO – CP Ø914	1160	610	914	302	120	1211	657	738	70
