Aquasphere SSP Pool Pump

Product Name	Price	Delivery	Qty
Aquasphere SSP 75M Pump Cód.ASTR75939	€295.00 €224.99
Aquasphere SSP 100M Pump Cód.ASTR75940	€325.00 €246.99
Aquasphere SSP 150M Pump Cód.ASTR75941	€360.00 €287.00

Product Description

Aquasphere SSP

It is a range of standard pool pumps for residential pools;
Includes 1.6 liter pre-filter and D50mm couplings;
Single-phase motors, IP-X5 protection and class F insulation;
Flow rate from 12,5 to 19,5m ³ /h at 10 mcw ;
The pump includes connection fittings for suction and delivery of 50 mm diameter;
The Astralpool Aquasphere model is characterized by its low noise level of 61 dBA ;

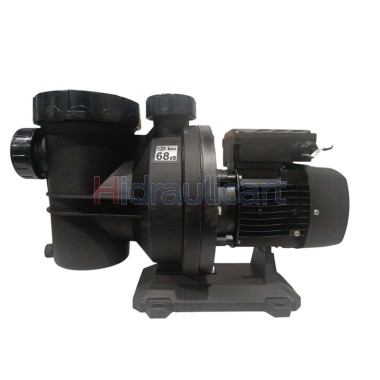

Aquasphere pumps are made of technical plastic with a 1,6 -liter capacity pre-filter and their transparent lid allows you to see the inside of the filter.

Compatibility

If you have an ESPA/BAICO pump from the models in the table, you can replace it with an AQUASPHERE pump - compatible models per line in the table.

Aquasphere	SILENT SPACE	NOX SPA	BAICO ETNA2
SSP 75M	SILEN 75	NOX 75 15M	ETNA2 300 4-M
SSP 100M	SILEN 100	NOX 100 18M	ETNA2 350-4M
SSP 150M	SILEN150	NOX 150 22M	ETNA2 420-4M

Specification

Model	Voltage	Nominal flow rate to H _N	Flow Elevation	Maximum Elevation	Max. Flow rate at a 4m elevation	Nominal Power	Absorbed Power Maximum	Efficiency class
Model	Voltage	U _N (V)	Q _N (m ³ /h)	H _MAX (m)	Q _MAX (m ³ /h)	_P2N (kW)	P _1MAX (kW)	EN17645
75M	230V	12.5	10	14.7	18.5	0.55	0.9	D
100M	230V	16	10	17.1	21.7	0.75	1.2	D
150M	230V	19.5	10	17.3	26.3	1.10	1.4	D

Model	Product dimensions (mm)											Package
Model		DN		the	b	w	f	h	h1	d	and	Kg	m ³
514	238	160	307	226	223	170	330	Ø50	Ø50	4u x Ø10	209	9.3	0.054
514	238	160	307	226	223	170	330	Ø50	Ø50	4u x Ø10	209	10.4	0.054
532	238	160	307	226	223	170	330	Ø50	Ø50	4u x Ø10	209	11.8	0.056
