ARAL PLUS C-1500 Swimming Pool Pump

Product Name	Price	Delivery	Qty
ARAL PLUS C-1500 3HP 230/400 50Hz Cód.ASTR76905	€3,571.00 €2,857.00
ARAL PLUS C-1500 4HP 230/400 50Hz Cód.ASTR76906	€4,191.00 €3,353.00
ARAL PLUS C-1500 4HP 400/690 50Hz Cód.ASTR76907	€3,408.00 €3,353.00
ARAL PLUS C-1500 5,5HP 230/400 50Hz Cód.ASTR76908	€3,535.00 €3,478.00
ARAL PLUS C-1500 5,5HP 400/690 50Hz Cód.ASTR76909	€3,535.00 €3,478.00
ARAL PLUS C-1500 7,5HP 230/400 50Hz Cód.ASTR76910	€4,201.00 €4,133.00
ARAL PLUS C-1500 7,5HP 400/690 50Hz Cód.ASTR76911	€5,167.00 €4,133.00
ARAL PLUS C-1500 10HP 400/690 50Hz Cód.ASTR76912	€5,325.00 €4,260.00
ARAL PLUS C-1500 12.5HP 400/690 50Hz Cód.ASTR76913	€6,899.00 €5,519.00
ARAL PLUS C-1500 15HP 400/690 50Hz Cód.ASTR76914	€7,475.00 €5,980.00
ARAL PLUS C-1500 20HP 400/690 50Hz Cód.ASTR76915	€8,697.00 €6,957.00
ARAL PLUS C-1500 25HP 400/690 50Hz Cód.ASTR76916	€9,542.00 €7,633.00

Product Description

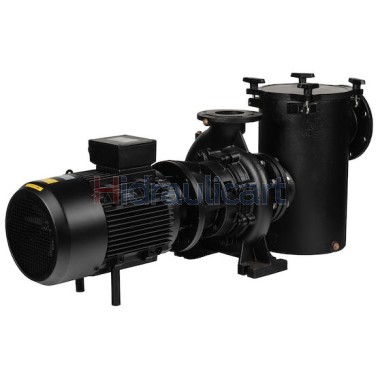

ARAL PLUS C-1500

Made of cast iron and specifically designed for public swimming pools.

Its four-pole design motor and 1.450 rpm up to 25 HP , is meticulously designed for high performance, offering large flow rates ideal for substantial pools, while maintaining low noise levels during operation.

All components in contact with water undergo cataphoresis treatment, significantly extending the life of the cast iron by providing a robust barrier against corrosion and oxidation, ensuring durability and sustained performance over time. Also available with bronze impeller.

I P55 ;
standard motor (EN IEC 60034-7) ;
Cataphoresis treatment;
Flow rate - up to 340 m ³ /h ;
Power rating - from 3HP to 25HP ;
Motor - 50 Hz/1450 rpm . Also available in 60Hz .

Specification

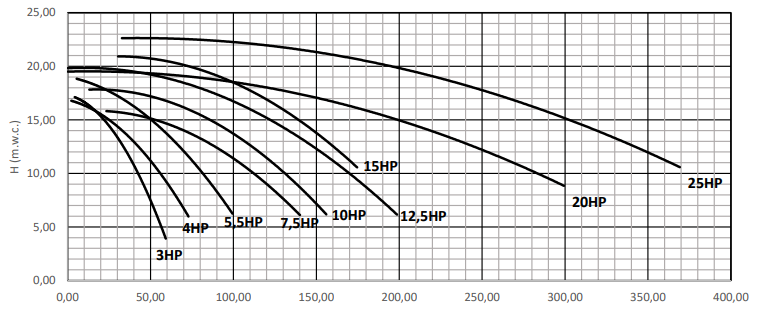

Model	Energy	A	A	Suction Connection	Delivery Connection	mwc
						6	8	10	12	14	16	18	20	22
						m ³ /h
76905	2.2	7.9	4.5	100	50	54	48	42	36	28	17	-	-	-
76906	3	10.5	6	100	80	73	66	55	46	33	11	-	-	-
76907	3	6.1	3.5	100	80	73	66	55	46	33	11	-	-	-
76908	4	13.8	7.9	100	80	99	91	82	70	58	42	19	-	-
76909	4	7.9	4.6	100	80	99	91	82	70	58	42	19	-	-
76910	5.5	18.6	10.7	125	100	140	128	114	97	67	23	-	-	-
76911	5.5	10.7	6.2	125	100	140	128	114	97	67	23	-	-	-
76912	7.5	14.3	8.3	125	100	156	145	131	117	97	73	13	-	-
76913	9.2	17.5	10.1	150	100	199	185	170	154	131	112	77	-	-
76914	11	20.4	11.8	150	100	-	-	175	163	146	125	102	73	-
76915	15	27.3	15.8	200	125	-	299	287	260	222	175	126	-	-
76916	18.5	33.5	19.4	200	125	-	-	369	349	324	293	244	184	101

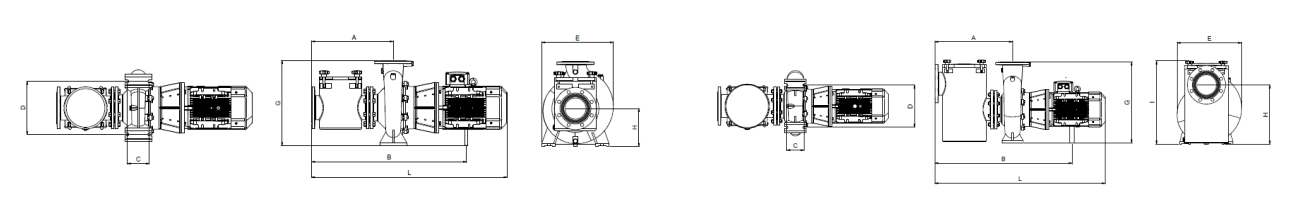

Model	Dimensions
Model	A	B	C	D	E	G	H	I	L
76905	400	726	95	250	340	405	180	-	908
76906	425	815	130	315	404	480	200	-	1024
76907	425	815	130	315	404	480	200	-	1024
76908	425	823	130	315	404	480	200	-	1053
76909	425	832	130	315	404	480	200	-	1053
76910	486	922	130	315	426	505	225	-	1163
76911	486	922	130	315	426	505	225	-	1163
76912	486	933	130	315	426	505	225	-	1185
76913	586	1033	130	315	426	505	417	610	1285
76914	586	1191	130	315	426	505	417	610	1394
76915	668	1317	130	315	487	605	490	698	1521
76916	668	1319	130	315	487	605	490	698	1578
