Product Name	Price	Delivery	Qty
PSH FDN-14 Cód.PSHFDN3000	€2,020.00
PSH FDN-15 Cód.PSHFDN-15	€2,078.00
PSH FDN-16 Cód.PSHFDN-16	€2,286.00
PSH FDN-17 Cód.PSHFDN-17	€2,289.00
PSH FDN-18 Cód.PSHFDN-18	€2,574.00
PSH FDN-19 Cód.PSHFDN-19	€2,737.00
PSH FDN-20 Cód.PSHFDN-20	€3,073.00
PSH FDN-21 Cód.PSHFDN-21	€3,287.00
PSH FDN-22 Cód.PSHFDN-22	€3,655.00

Product Description

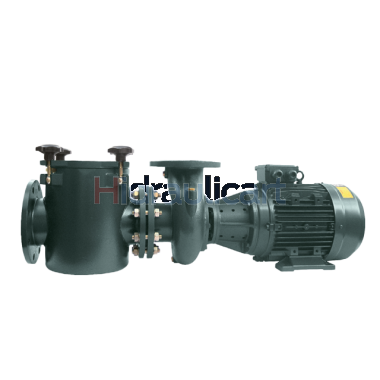

PSH FDN-3000 Pump

The FDN-3000 Pump , with a high-efficiency IE3 type motor, was developed by PSH to offer the best results in the filtration and cleaning of water in public swimming pools.

With its large volume pre-filter, with independent stainless steel basket, it can be used by adding another pre-filter, or even choose to use it without it.

The range is available in bronze or stainless steel upon request.

Features

Impeller - Bronze/Aluminum (FDN-17/18/19/20/21/22) or brass (FDN-14/15/16) ;
Rotation - 2900 rpm ;
Shaft - AISI 316L stainless steel;
Mechanical Seal - Carbon + Resin - Ceramic;
Pre-filter basket - AISI 304 ;
Protection - IP55 ;
Screws - AISI 304 stainless steel;
Flow rate - up to 190 m ³ /h and AISI 316L stainless steel shaft;
Power rating - from 2HP to 12,5HP ;
Voltage - 230 / 400V or 400 / 690V ;
Motor - 50 Hz / 2900 rpm , also available in 60 Hz .

Advantages

Robust and resistant centrifugal pump
High efficiency motor class IE3 according to EC nº640 / 2009 .
Long-term cataphoresis treatment to prevent corrosion.
Independent pre-filter that allows use with other pump series.

Specification

Model	Power		III 230/400V		III 400/690V		Manometric Height									Connections		Weight
	Power		III 230/400V		III 400/690V		6	8	10	12	14	16	18	20	22	DNA	DNI	Weight
	kW	HP	A	A	A	A	Flow rate (m ³ /h)									IN	OUT	kg
FDN-14	1.5	2	5.3	3.1	-	-	44	41	36	31	22	-	-	-	-	80	3"BSP	53
FDN-15	2.2	3	7.6	4.3	-	-	51	47	42	38	27	8	-	-	-	80	3"BSP	55
FDN-16	3	4	9.9	5.7	-	-	53	49	45	40	35	27	8	-	-	80	3"BSP	60
FDN-17	3	4	9.9	5.7	-	-	118	105	86	70	49	20	-	-	-	100	100	68
FDN-18	4	5.5	13	7.4	7.4	4.3	106	99	85	76	58	41	-	-	-	100	100	77
FDN-19	4	5.5	13	7.4	7.4	4.3	152	130	110	81	55	-	-	-	-	125	100	90
FDN-20	5.5	7.5	17.6	10.1	10.1	5.9	152	136	123	106	81	55	5	-	-	125	100	99
FDN-21	7.5	10	-	-	13.5	7.8	185	172	158	143	126	106	82	43	-	125	100	104
FDN-22	9.2	12.5	-	-	16.6	9.6	194	179	163	147	129	109	87	61	26	125	100	113
