Product Name	Price	Delivery	Qty
Pool Pump PSH MICRO-25, 0.25CV, 230V Cód.PSHMICRO-25	€189.50 €128.20
Pool Pump PSH MICRO-33, 0.33CV, 230V Cód.PSHMICRO-33	€201.00 €136.00
Pool Pump PSH MICRO-50, 0.50CV, 230V Cód.PSHMICRO-50	€208.00 €140.70

Product Description

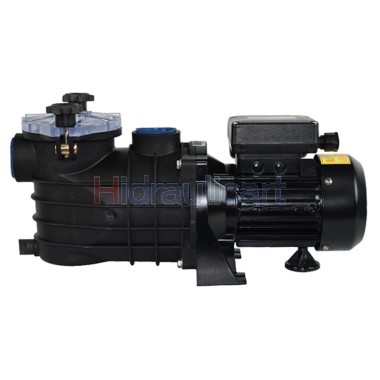

PSH Micro Pool Pump

Specially designed for small pools, above ground pools, Spa type bathtubs.

The PSH Micro Pump B a self-priming centrifugal pump suitable for installation in filtration systems for small or removable pools.

It is available in powers of 0.25CV , 0.33CV and 0.50CV with single-phase motors.

Features

Suitable for working with saline chlorinators or seawater;
Thermal protection included for maximum safety:
Incorporates a 1 meter long cable;
High quality mechanical seal and bearings;
Easy-to-use transparent lid makes pump maintenance easier;
Pre-filter basket built into the pump body ;
Insulation class - F ;
Protection - IP55 ;
Motor - 50 Hz / 2900 rpm .

Materials

Pump body - polypropylene reinforced with 30% fiberglass;
Impeller and diffuser - noryl reinforced with 30% fiberglass;
Pre-filter basket - polypropylene;
Shaft - AISI 420 stainless steel;
Mechanical seal - carbon + resin-ceramic.

Specification

Model	Power		Capacity μF	II 230 V A	Manometric Height									DN connections		Weight kg
	kW	HP			4	5	6	7	8	9	10	11	12	IN	OUT
	kW	HP			Flow rate ( ^m3 /h)									IN	OUT
MICRO-25	0.2	0.25	10	1.4	6.1	5.5	4.8	4	3.1	2	-	-	-	1"½	1"½	6.4
MICRO-33	0.25	0.33	12	1.7	9.9	9.3	8.3	7.6	6.7	5.6	4.6	2.7	-	1"½	1"½	7.4
MICRO-50	0.37	0.5	16	2.4	12.1	11.1	10.3	9.6	8.5	7.5	6.2	5.1	3.1	1"½	1"½	8

VOLUME	CIRCULATION	FILTRATION	Ø FILTER	PUMP
30 m³	8 h	50 m³/h/m²	300 mm	0.33 HP
40-50 m³	8 h	50 m³/h/m²	400 mm	0.50 HP
70-80 m³	8 h	50 m³/h/m²	500 mm	0.50 HP
90-100 m³	8 h	50 m³/h/m²	600 mm	0.75 HP
100-140 m³	8 h	50 m³/h/m²	750 mm	1 HP
140-170 m³	8 h	50 m³/h/m²	800 mm	1.50 HP
170-200 m³	8 h	50 m³/h/m²	900 mm	2 HP

Documents

For more information, see the Technical Data Sheet
