ESPA Acuaria 07S Submersible Water Pump up to 3.9 m3/h

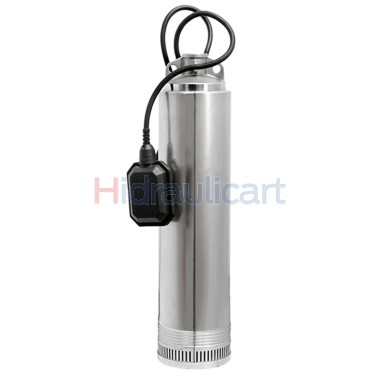

ESPA Acuaria 07S Submersible Water Pump up to 3.9 m3/h

ESPA ACUARIA horizontal multistage centrifugal pumps, silent and with excellent performance , suitable for domestic and industrial applications, pressure groups and irrigation systems.

Submersible clean water pumps are ideal for a variety of applications , including domestic use, sprinkler irrigation, and booster systems. Designed to pump clean, solids-free water, these pumps feature a stainless steel body, base, and impeller.

Product Name	Price	Delivery	Qty
Electric pump Espa Acuaria 07-03, 230V Cód.ESP200010	€481.00 €380.50
Electric pump Espa Acuaria 07-03, 230V, Float Cód.ESP200020	€517.00 €408.90
Electropump Espa Acuaria 07-04, 230V Cód.ESP210010	€669.00 €401.40
Electric pump Espa Acuaria 07-04, 230V, Float Cód.ESP210020	€593.00 €435.60
Electric pump Espa Acuaria 07-05, 230V Cód.ESP220010	€573.00 €420.90
Electric pump Espa Acuaria 07-05, 230V, Float Cód.ESP220020	€606.00 €445.10
Electropump Espa Acuaria 07-06, 230V Cód.ESP230010	€777.00 €466.20
Electric pump Espa Acuaria 07-06, 230V, Float Cód.ESP230020	€831.00 €498.60

Product Description

ESPA ACUARIA 07S

Submersible electric pumps for pumping clean water without suspended solids.
Designed for domestic use, sprinkler irrigation and pressure groups.

Operation

Fluid - Clean water free of solids
Maximum liquid temperature - 35 ºC
Maximum immersion depth - 12 m
Passage of solids - 1,5 mm
Maximum number of starts per hour - 25

Construction Features

Pump body - Stainless steel
Pump Base - Stainless Steel
Turbine - Stainless Steel
Diffusers - Technopolymer
Mechanical Seal - Double Graphite/Ceramic
External Float - With built-in switch (Float models, 230V )
Power Cable - 15 m

Electric Motor - Submersible motors with IPX8 protection rating and class F insulation. Water cooled

Links

Ø Output - 1“

Specification

AQUARIA 07S
Model	I [A]			P1	P2		Q
	1 ~ 230V	3 ~ 230V	3 ~ 400V	[kW]	[kW]	[HP]	l/min 0	10	20	30	40	50	60	65
							m ³ /h 0	0.6	1.2	1.8	2.4	3.0	3.6	3.9
							H [m]
AQUARIA 07S 3	2.9	-	-	0.65	0.37	0.50	-	33	29	26	21	15	8	4
AQUARIA 07S 4	4.0	-	1.5	0.90	0.55	0.75	-	41	37	32	26	19	10	6
AQUARIA 07S 5	4.7	-	2.2	1.00	0.75	1.00	-	50	46	40	32	23	13	8
AQUARIA 07S 6	6.2	-	2.2	1.20	0.90	1.20	-	60	55	47	37	26	15	9

Documents

For more information, see the Technical Data Sheet
For more information, see the Instruction Manual.
