OCIO PIUSI tank level control

Continuous management system of the level in the tank.

OCIO detects the static pressure generated by the height of the liquid using a tube inserted into the tank and displays the level or volume of the liquid.

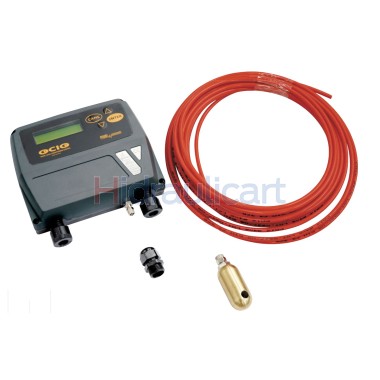

The system consists of

• A tube to detect static pressure - The tube with terminal is inserted through the roof of the tank and immersed in the liquid until it touches the bottom of the tank.
• A control unit for viewing the level and for managing the system - The unit is equipped with intuitive and complete software, and allows the connection of two alarm or blocking devices.

Using the software it is possible

• Establish the type and dimensions of the deposit;
• Set level alarms;
• Set the level indication;
• Define the unit of measurement;
• Calibrate the instrument.

Depending on the configured alarm levels, the control unit activates or deactivates a contact via the remote switch that activates the alarm devices or blocks the power supply to connected equipment.

• Maximum measurable height - 4 m;
• Probe tube length - 10 m .
