VERDON VS Variable Speed Pump

VER PREÇO / COMPRAR




AstralPool
Product Name Price Delivery Qty
VERDON VS 100
Cód.AST75361
€977.15
VERDON VS 200
Cód.AST75362
€1,220.00

Product Description

VERDON VS

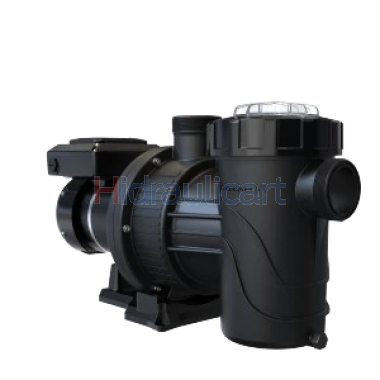

The Verdon VS Pump from Astralpool is a line of self-priming pumps with built-in frequency inverter, HMI and connectivity with the app Fluidra Pool .

  • Designed and manufactured to deliver professional performance, reliability and exceptional value for money;
  • Ease of use and maintenance;
  • Energy Saving;
  • Silent;
  • Full control anywhere, anytime.


IDEAL FOR RESIDENTIAL POOLS


The Astralpool Verdon VS pump is a highly energy-efficient variable speed pump (up to 80% energy savings) and very quiet at low speeds. Significant cost savings thanks to its low energy consumption.

To understand how a variable speed pool pump works, it is best to compare the pump to a light bulb. With a traditional pool pump, like a light bulb, it is either on or off. This means it always operates at maximum power or at maximum speed . A variable speed pool pump is equivalent to having a dimmer for the light bulb. This means you can choose to make the light bulb less bright at the end of the day, for example. Less energy is used. With a pool pump, you can leave the pump running at a lower speed.

  • Variable speed technology allows the pump to operate at very low speeds , significantly reducing consumption and noise.
  • It also improves the quality and efficiency of chlorination filtration and increases the time between washes (less equipment maintenance) .
  • Double security system for separate water and electricity.
  • Optional timer for 24 hours working. Smart full touch screen user interface Design .

But what's the point in having a pool pump running at a lower speed?

At night, the pool is usually covered and therefore there is less pollution in the water, in this case the water does not need to be filtered as often. When vacuuming, you will prefer a pump that is as powerful as possible, so that the suction power is maximum. With a variable speed pool pump , you have many more options and do not waste energy unnecessarily.



Just Listen to the Sound of Water
Top filter
It is up to 12dB(A) quieter than a standard filtration pump.
Maximum Performance, Minimum Consumption
Active brushing 3 programmable speeds , reducing consumption by up to 80% and adjusting performance to the pool.
Wherever and whenever you want, you're in control
Active brushing
LCD screen for easy setup and control. With the App Fluidra Pool , you can control it from your mobile phone, anytime and anywhere.

Specification

MODEL Voltage Nominal Flow Rate Nominal Height

Maximum Height

Maximum Flow Rate Engine Power Maximum Power Pipe size
V m 3 /h m m m 3 /h kW kW mm
VS 100 230 15.5 10 16 23 0.75 0.99 D50
VS 200 230 25 19 17 32.5 1.49 1.59 D63
Model VS 100 VS 200
Δ Speed LS MS HS LS MS HS
Speed [%] 50 75 100 50 75 100
Frequency [Hz] 50 50
Motor Power [kW] 0.75 1.49
Maximum Power [kW] 0.17 0.47 0.99 0.24 0.73 1.59
Flow rate [m 3 /h] 7.9 11.8 15.5 12.7 19.1 25
Differential Height [m] 2.6 5.8 10 2.6 5.8 10
Maximum pressure [m] 4.1 9.3 16 4.4 9.9

17

Noise [dBA] 48 58 66 49 59 68
