| Product Name | Price | Delivery | Qty |
|---|---|---|---|
| B3 Flange Electric Motor, 1500 RPM, 0.37kW, 0.50CV, 230V Cód.55003005 |
€132.00
|
||
| B3 Flange Electric Motor, 1500 RPM, 0.60kW, 0.80CV, 230V Cód.55003010 |
€170.00
|
||
| B3 Flange Electric Motor, 1500 RPM, 0.75kW, 1.00CV, 230V Cód.55003015 |
€183.00
|
||
| B3 Flange Electric Motor, 1500 RPM, 1.10kW, 1.50CV, 230V Cód.55003020 |
€217.00
|
||
| B3 Flange Electric Motor, 1500 RPM, 1.50kW, 2.00CV, 230V Cód.55003025 |
€246.00
|
Product Description

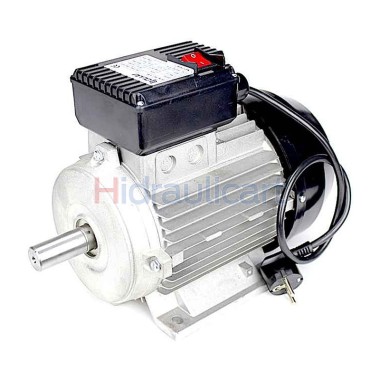

Single-phase asynchronous motor with 1 capacitor.
The OF series shaft end motors comply with IEC international provisions and standards. They can be used in household appliances, air compressors, pumps, fans, etc. The terminal box is located on the top of the motor where it includes an ON-OFF switch.
Operation
Maximum ambient temperature: 40ºC
Voltage: 230V
Frequency: 50Hz
Protection Class: IP44
Electric Motor
Four-pole induction type, closed and self-ventilated, suitable for continuous operation, with IPX4 degree of protection and class F insulation. Single-phase 230V - 50Hz with permanent capacitor. Motors must be thermally protected by the user.
| Electric Motor with Switch Plug | |||||||
| Model | Speed | Power | Voltage | Chain | Shaft Diameter | Family | |
| RPM | kW | CV | V | A | mm | ||
| OF 4P 0.37KW | 1500 | 0.37 | 0.50 | 230 | 3.3 | 14 | 71 |
| OF 4P 0.60KW | 1500 | 0.60 | 0.80 | 230 | 4.5 | 19 | 80 |
| OF 4P 0.75KW | 1500 | 0.75 | 1.00 | 230 | 5.3 | 19 | 80 |
| OF 4P 1.10KW | 1500 | 1.10 | 1.50 | 230 | 7.5 | 24 | 90S |
| OF 4P 1.50KW | 1500 | 1.50 | 2.00 | 230 | 10.0 | 28 | 90L |
-
-
